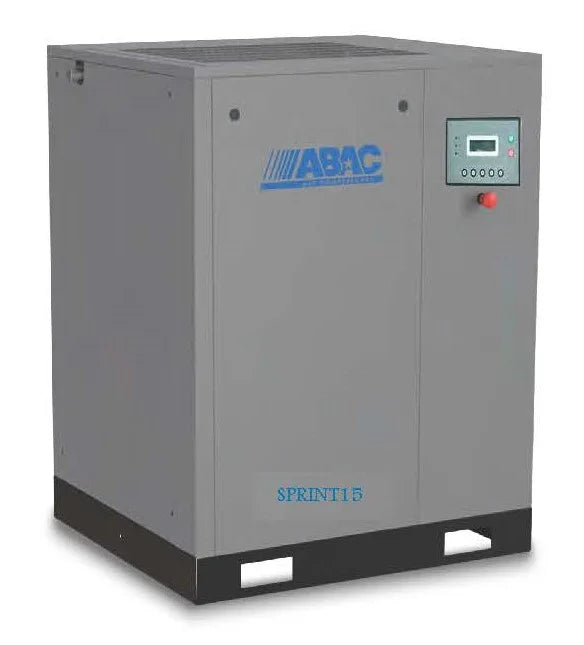

The ABAC screw compressor SPRINT 15 is a rotary screw compressor built for dependable industrial use. As a screw compressor, it is designed for long running hours, so it suits workshops and small production sites that need a steady air supply through the whole shift. Its 15 kW (20 HP) motor delivers 1800 L/min (64 CFM) of free air at a working pressure of 10 bar (145 psi), enough to run several pneumatic tools or a small production line.
This screw compressor runs at about 73 dB(A) on standard 3-phase 400V/50Hz power and weighs 230 kg (507 lbs), so it suits workshops that need reliable air without a large installation.
The SPRINT 15 is a product of ABAC, part of the Atlas Copco Group. ABAC is known for its experienced technical team and customer support, from the first consultation through to after-sales maintenance. This unit is assembled in China.
Key benefits
- Rotary screw compressor design for continuous, long-hour duty
- 64 CFM (1800 L/min) output for several pneumatic tools or a small production line
- 10 bar (145 psi) working pressure
- Noise level of 73 dB(A)
- Light and manageable at 230 kg (507 lbs)
- Backed by the Atlas Copco Group and the ABAC brand
Technical specifications
| Specification |
Value |
| Brand |
ABAC (Atlas Copco Group) |
| Model |
SPRINT 15 |
| Type |
Rotary screw air compressor |
| Air displacement |
1800 L/min (64 CFM / 1.8 m³/min) |
| Max pressure |
10 bar (145 psi) |
| Motor power |
15 kW (20 HP) |
| Power supply |
3Ph / 400V / 50Hz |
| Noise level |
73 dB(A) ± |
| Weight |
230 kg (507 lbs) |
| Origin |
Assembled in China |
Ideal applications
- Automotive and garage workshops
- Small manufacturing and production lines
- Metal fabrication and welding shops
- Woodworking and carpentry workshops
- Construction and industrial maintenance
- Pneumatic tools and spray painting
Sizing and installation
To size a screw compressor, add up the air use of everything that can run at the same time, then allow 20 to 30 percent extra for future growth. At 64 CFM, the SPRINT 15 suits workshops running a few tools or machines together. Plan a level floor that can carry 230 kg, a well-ventilated room, and a suitable three-phase supply.
