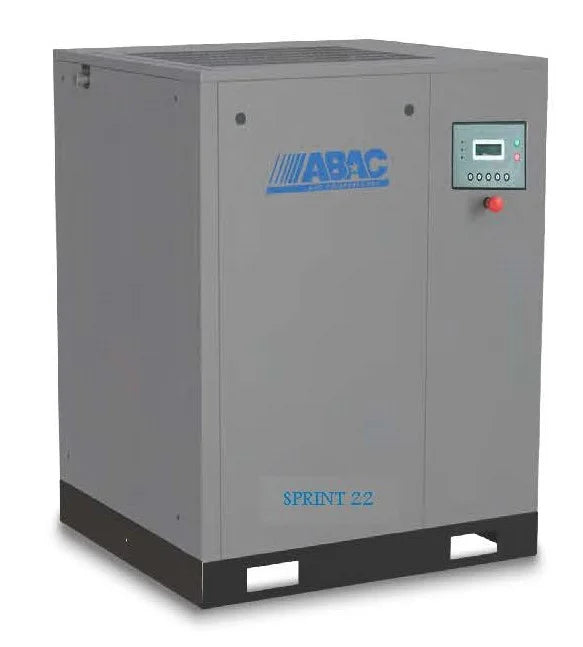

The ABAC screw compressor SPRINT 22 is a rotary screw compressor built for demanding industrial work. As a screw compressor, it is designed for long running hours, so it suits businesses that need a steady air supply through the whole shift. Its 22 kW (30 HP) motor delivers 2800 L/min (98 CFM) of free air at a working pressure of 10 bar (145 psi), enough to run several pneumatic tools or a small to mid-size production line.
This screw compressor runs at about 72 dB(A), a controlled sound level for its size, on standard 3-phase 400V/50Hz power. At 710 x 840 x 1275 mm and 380 kg, it fits into most workshops without needing a large installation area.
The SPRINT 22 is a product of ABAC, part of the Atlas Copco Group. ABAC is known for its experienced technical team and customer support, from the first consultation through to after-sales maintenance. This unit is assembled in China.
Key benefits
- Rotary screw compressor design for continuous, long-hour duty
- 98 CFM (2800 L/min) output for multiple tools or a small production line
- 10 bar (145 psi) working pressure
- Controlled noise level of 72 dB(A)
- Compact footprint of 710 x 840 x 1275 mm
- Backed by the Atlas Copco Group and the ABAC brand
Technical specifications
| Specification |
Value |
| Brand |
ABAC (Atlas Copco Group) |
| Model |
SPRINT 22 |
| Type |
Rotary screw air compressor |
| Air displacement |
2800 L/min (98 CFM / 2.8 m³/min) |
| Max pressure |
10 bar (145 psi) |
| Motor power |
22 kW (30 HP) |
| Power supply |
3Ph / 400V / 50Hz |
| Noise level |
72 dB(A) ± |
| Weight |
380 kg (838 lbs) |
| Dimensions (L x W x H) |
710 x 840 x 1275 mm |
| Origin |
Assembled in China |
Ideal applications
- Manufacturing and production lines
- Automotive and garage workshops
- Metal fabrication and welding shops
- Woodworking and carpentry factories
- Construction and industrial maintenance
- Pneumatic tools and spray painting
Sizing and installation
To size a screw compressor, add up the air use of everything that can run at the same time, then allow 20 to 30 percent extra for future growth. At 98 CFM, the SPRINT 22 suits sites running several tools or machines together. Plan a level floor that can carry 380 kg, a well-ventilated room, and a suitable three-phase supply.
