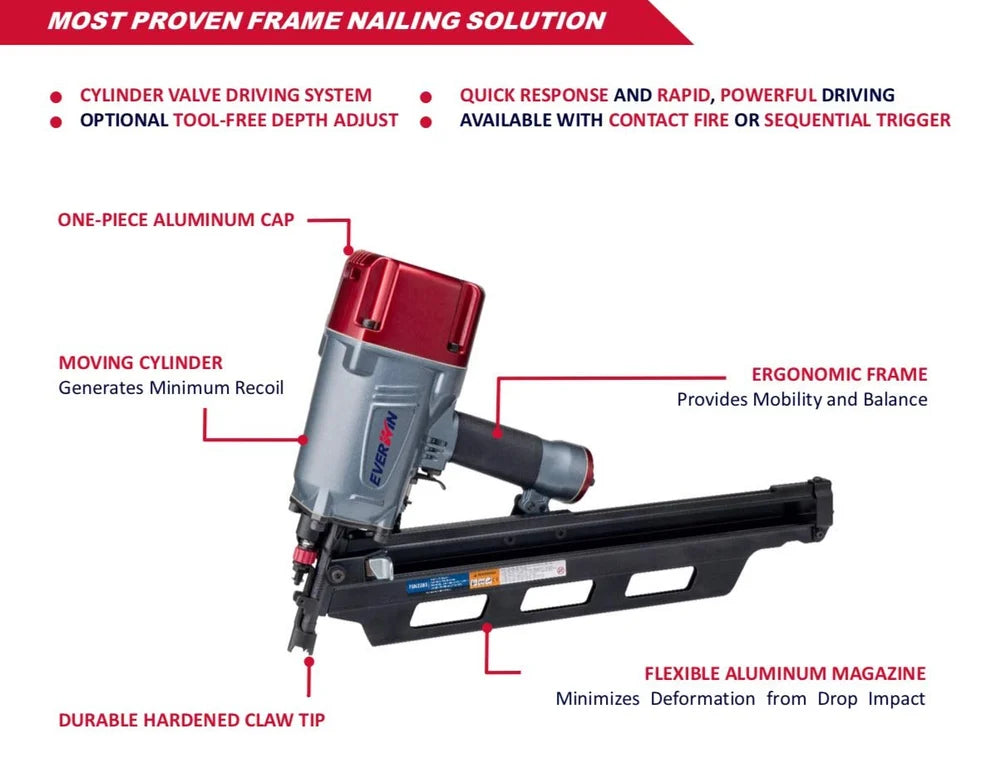

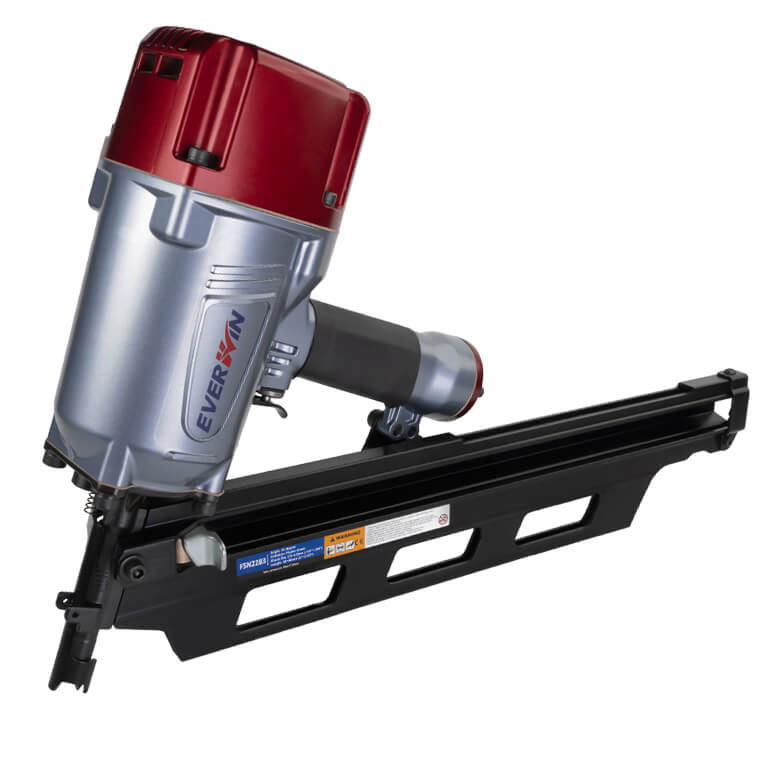

The Everwin FSN2283 is the most proven frame nailing solution, built with a cylinder valve driving system for quick response and rapid, powerful driving. Available with an optional tool-free depth adjust and your choice of contact fire or sequential trigger, it adapts to the way you work.
The one-piece aluminum cap and moving cylinder generate minimum recoil, while the ergonomic frame provides excellent mobility and balance on the job. A flexible aluminum magazine minimizes deformation from drop impact, and the durable hardened claw tip ensures reliable, repeated performance in tough working conditions.
Applications
- Sheathing
- Framing
- General Construction
Features
-
Cylinder Valve Driving System – Quick response and rapid, powerful driving
-
Optional Tool-Free Depth Adjust – Fast, easy depth control
-
Dual Trigger Options – Available with contact fire or sequential trigger
- One-Piece Aluminum Cap
-
Moving Cylinder – Generates minimum recoil
-
Ergonomic Frame – Provides mobility and balance
-
Flexible Aluminum Magazine – Minimizes deformation from drop impact
- Durable Hardened Claw Tip
Tool Specification
| Weight |
8.2 lbs (3.7 kg) |
| Height |
13.4" (340 mm) |
| Width |
4.7" (120 mm) |
| Length |
20.6" (523 mm) |
| Operating Pressure |
70 to 120 PSI (5–8 bars) |
| Firing Mode |
Contact fire or Sequential |
| Driving Power |
823 in-lbs |
Fastener Specification
| Type |
22° Plastic Collated Nails |
| Length |
2"–3-1/2" (50–90 mm) |
| Shank Dia. |
0.113"–0.148" (2.9–3.8 mm) |
| Max Head Dia. |
0.268"–0.315" (6.8–8.0 mm) |
| Load Capacity |
70 |
