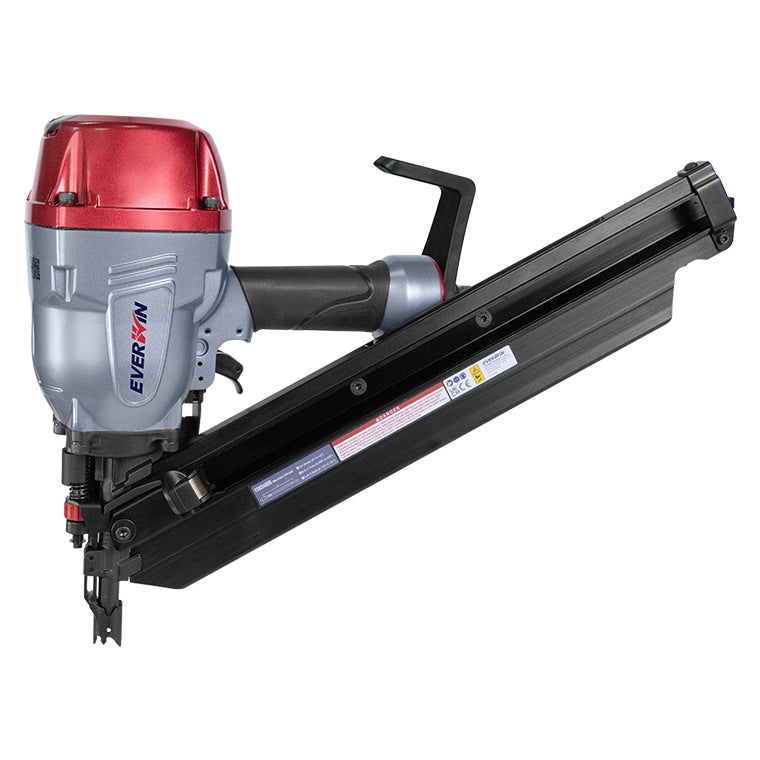

Everwin FSN3490B is powerful, fast, and built to last. Engineered with 1,000 in-lbs. of energy, it drives nails cleanly through today's harder engineered materials. Hardened toe nailing teeth grip the workpiece firmly, improving nail placement accuracy and eliminating the misses that slow you down. The compact nose design delivers a clear line of sight, so you stay on target in tight spaces and awkward angles. Adjustable depth-of-drive gives you precise, repeatable control across varying material conditions.
Available with a sequential trigger installed and a contact trigger included in the box, it gives you the flexibility to work the way the job demands.
The FSN3490B drives 34° paper tape collated framing nails from 2" to 3-1/2" (50–90mm), and is purpose-built for high-volume framing, sheathing, and off-site prefab construction.
Applications
- Framing
- Sheathing
- Decking
- Subfloors
- General Construction
Features
-
Superb Driving Energy – Most powerful nailer in its class
-
Durable Magazine – Ductile all-metal magazine
-
High-Speed Operation – 13 cycles/second
-
Serrated Contact Arm – Hardened, aggressive toenail safety
-
Ultra-Compact Nose – Allows clear line of sight
- 46mm Wide Rafter Hook
-
Depth Adjustable – Tool-free depth adjustment
-
Dual Trigger Options – Available with Contact or Sequential trigger (Sequential version includes Contact trigger in the box)
Tool Specification
| Weight |
3.6 kg (7.9 lbs) |
| Height |
335 mm (13.2") |
| Width |
158 mm (6.2") |
| Length |
467 mm (18.4") |
| Operating Pressure |
5–8 bar (70–120 psi) |
| Driving Power (@ 100 psi) |
1000 in-lbs |
| Air Consumption (@ 90 psi) |
2.5 L/sec (5.3 cfm) |
Fastener Specification
| Type |
34° Paper Collated Nails |
| Capacity |
90 |
| Nail Length |
50–90 mm (2"–3-1/2") |
| Nail Head Dia. |
6.3–7.7 mm (0.248"–0.303") |
| Nail Shank Dia. |
2.9–3.3 mm (0.113"–0.131") |
