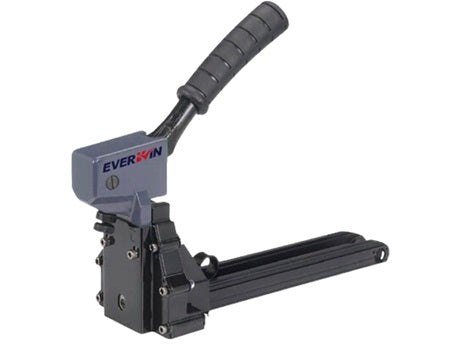

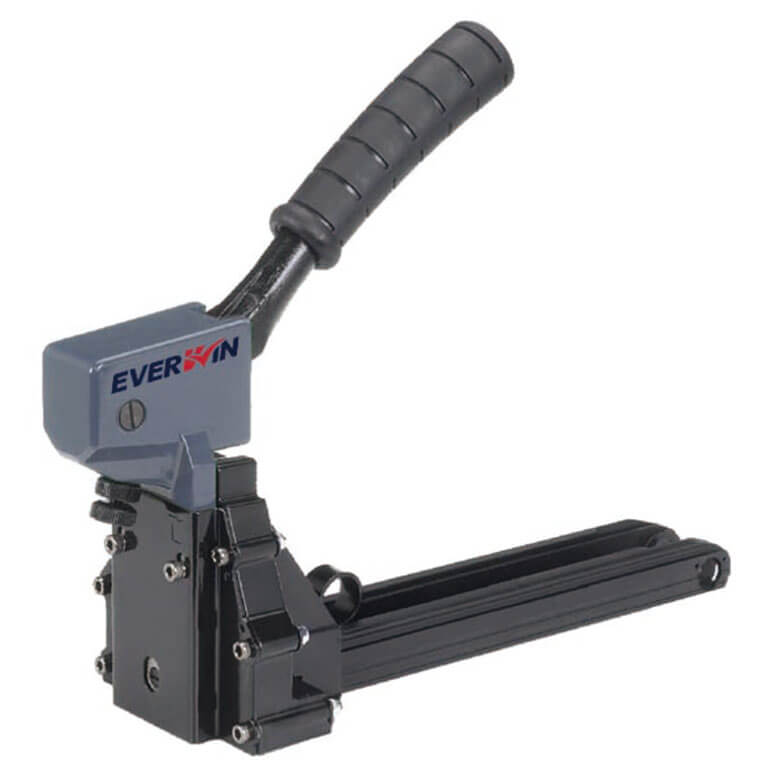

MCS Carton Closer
The MCS carton closer range is designed for all packaging staples known in the current packaging market. The tools feature a penetration adjustment which, combined with the robust bases and lightweight bodies, help provide a great user experience.
Applications
- Carton Box Sealing
- Packaging
Features
-
Full Mechanical – No air source required
-
Depth of Clinch and Penetration Adjustable – Fully adjustable according to your sealing needs
-
Ergonomically Sound – Lightweight and well-balanced
-
Optional Aux Handle – Shock-absorbent auxiliary handle
-
All Metal Construction – Endures rough production work environments
-
Noise Minimized – Mechanical operation generates minimal noise
Tool Specification
| Weight |
1.9 kg (4.2 lbs) |
| Height |
295 mm (11.6") |
| Width |
115 mm (4.5") |
| Length |
390 mm (15.4") |
| Operating Pressure |
Mechanical Tool – N/A |
| Driving Power (in-lbs @ 100 psi) |
Mechanical Tool – N/A |
| Air Consumption (L/sec @ 90 psi) |
Mechanical Tool – N/A |

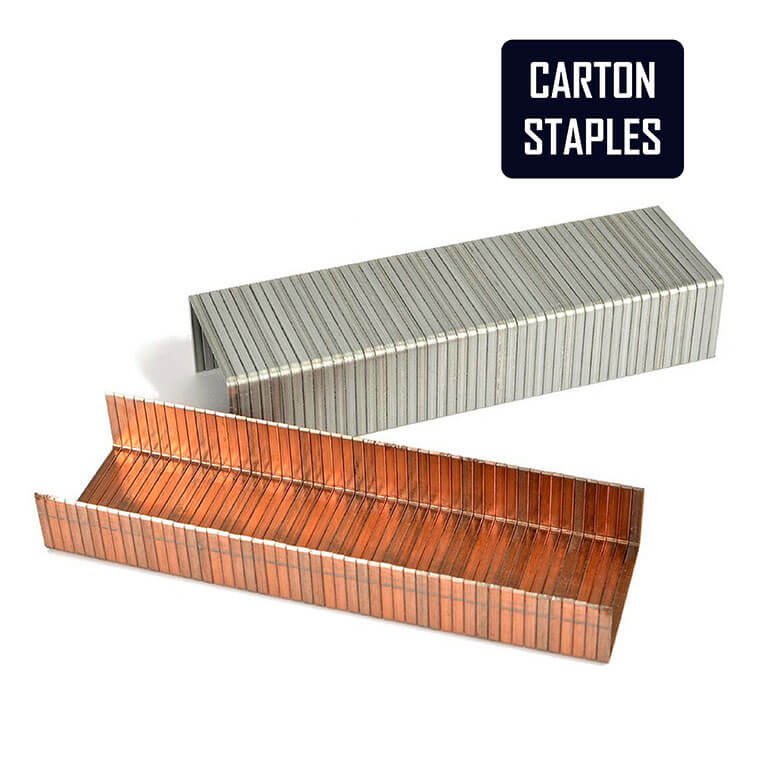

Fastener Specification
| Type |
34.7 mm (1-3/8") Crown Carton Staples |
| Loading Capacity |
100 |
| Shank Type |
Smooth |
| Staple Length |
15 & 18 mm (5/8" & 3/4") |
| Staple Crown Width |
34.7 mm (1-3/8") |
| Staple Wire Dia. |
0.9 x 2.3 mm (0.035" x 0.090") |
