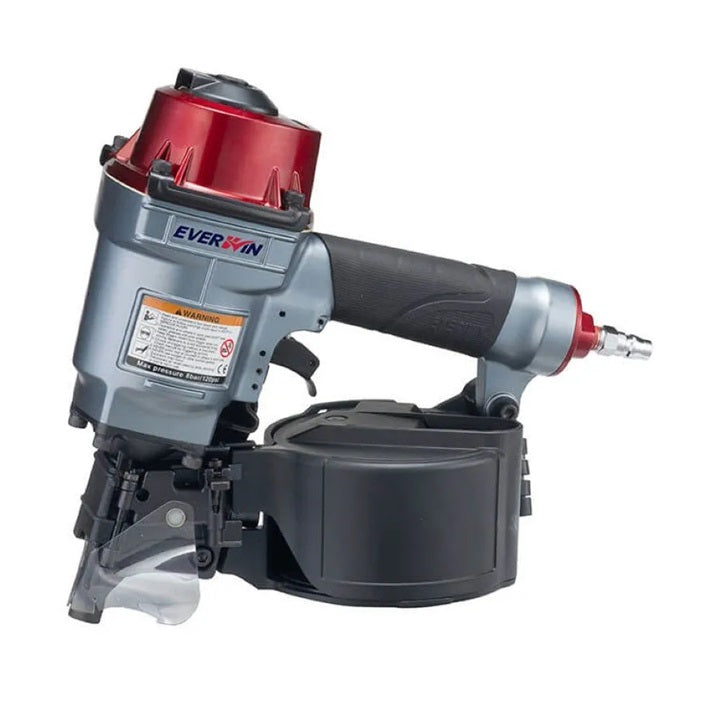

PN57B Coil Nailer
The PN57B Coil Nailer is designed to drive up to a 2-1/4" nail. Built for high-speed operations, it's engineered to handle the toughest production applications — ideal for boxes, crates, carton-to-skid, and pallet work.
Applications

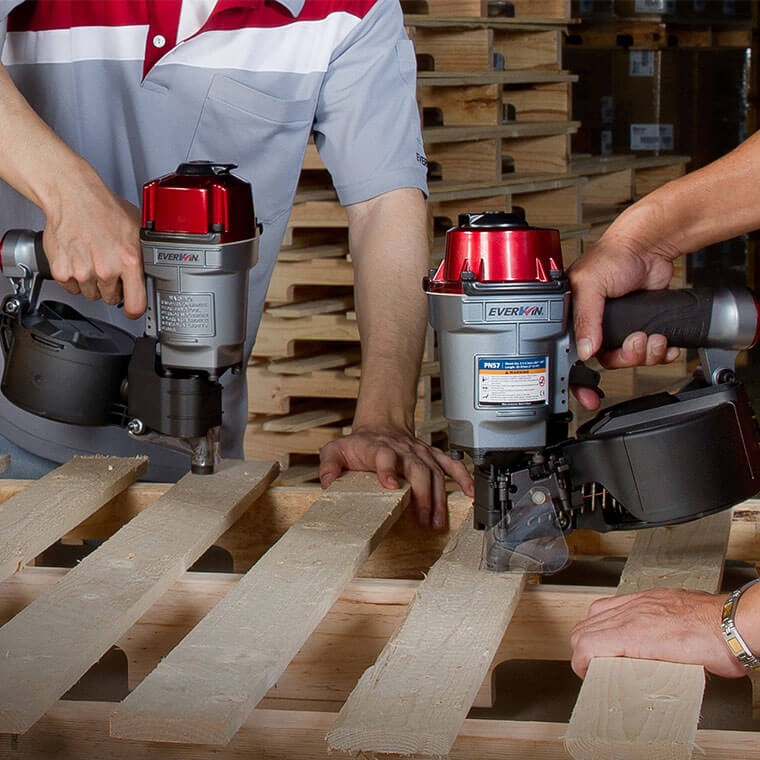

- Pallet Assembly
- Crate Assembly
- Drum Construction
- Mattress Box Assembly
- Manufactured Housing
- Bedding
Features
-
Sufficient Driving Energy – Powerful performance for heavy-duty applications
-
High-Speed Operation – Actuates up to 15 cycles/second
-
Flexible Trigger Options – Available with sequential trigger
-
Exclusive Component Treatment – Specially treated driver and safety mechanism
-
Adjustable Metal Exhaust Cover – Boosts flexibility in a durable design
-
Depth Adjustment Accessory Available – Optional heavy-duty depth-adjustable safety
-
Metal Nail Tray – Extremely reliable and wear-proof
-
Metal Body Protector – Helps prevent drag and tear wear on the tool frame
Tool Specifications
| Weight |
2.6 kg (5.7 lbs) |
| Height |
283 mm (11.1") |
| Width |
131 mm (5.2") |
| Length |
270 mm (10.6") |
| Operating Pressure |
5–8 bar (70–120 psi) |
| Driving Power (in-lbs @ 100 psi) |
439 |
| Air Consumption (L/cycle @ 90 psi) |
1.13 (2.39 cfm) |
