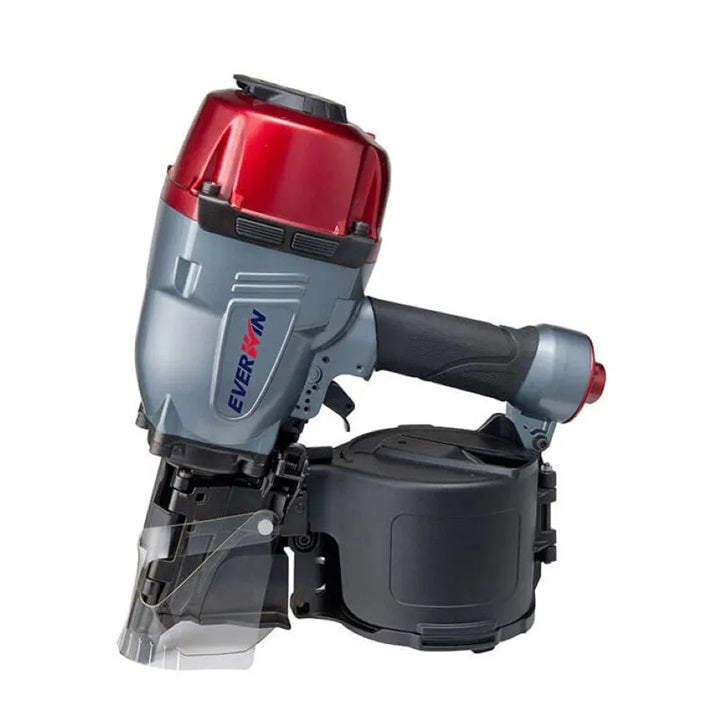

PN90 Coil Nailer
The PN90 Coil Nailer is designed to drive up to a 3-1/2" nail. Built for high-speed operations, it's engineered to handle the toughest production applications — ideal for boxes, crates, carton-to-skid, and pallet work.
Applications
- Pallet Assembly
- Crate Assembly
- Drum Construction
- Mattress Box Assembly
- Manufactured Housing
- Bedding
Features
-
Maneuverable Yet Powerful – Supreme power-to-weight ratio
-
Flexible Trigger Options – Available with sequential trigger
-
High-Speed Operation – Actuates up to 15 cycles/second
-
Heavy Duty Construction – Geared for pallet and crate production
-
Exclusive Component Treatment – Specially treated driver and safety
-
Adjustable Exhaust Cover – Directs air exhaust away from the user for comfort
-
Metal Nail Tray – Extremely reliable and wear-proof
Tool Specification
| Weight |
3.7 kg (8.2 lbs) |
| Height |
350 mm (13.8") |
| Width |
131 mm (5.2") |
| Length |
302 mm (11.9") |
| Operating Pressure |
5–8 bar (70–120 psi) |
| Driving Power (in-lbs @ 100 psi) |
1050 |
| Air Consumption (L/cycle @ 90 psi) |
2.1 (4.4 cfm) |
