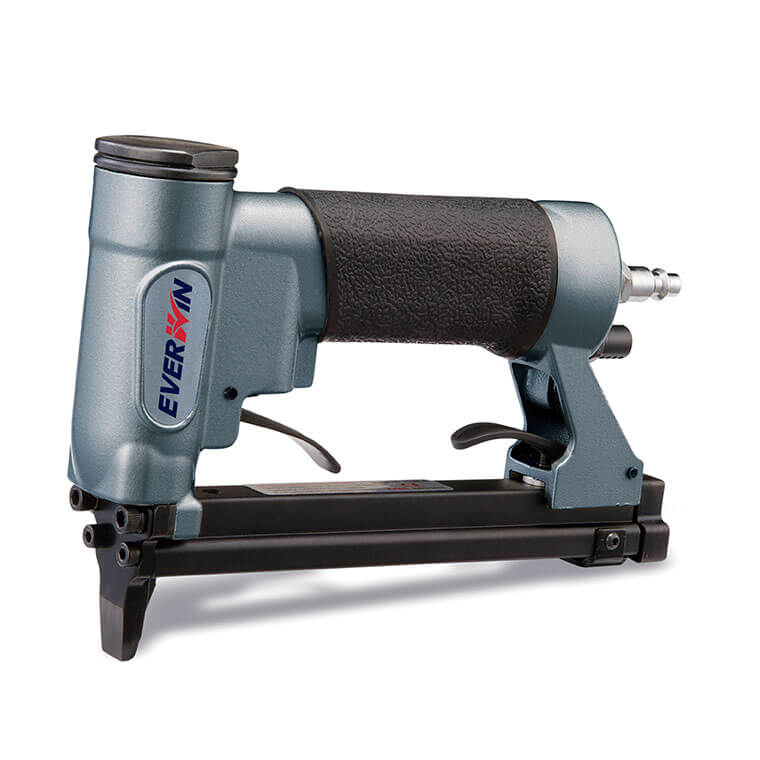

EVERWIN Single Shot Short Mag Pneumatic Upholstery Stapler Compact and durable, the US7116 series delivers best-in-class performance for a variety of fine wire stapling applications. With a robust motor and ergonomic design, this tool works all day, every day, and won't snag or scuff fabric.
Applications

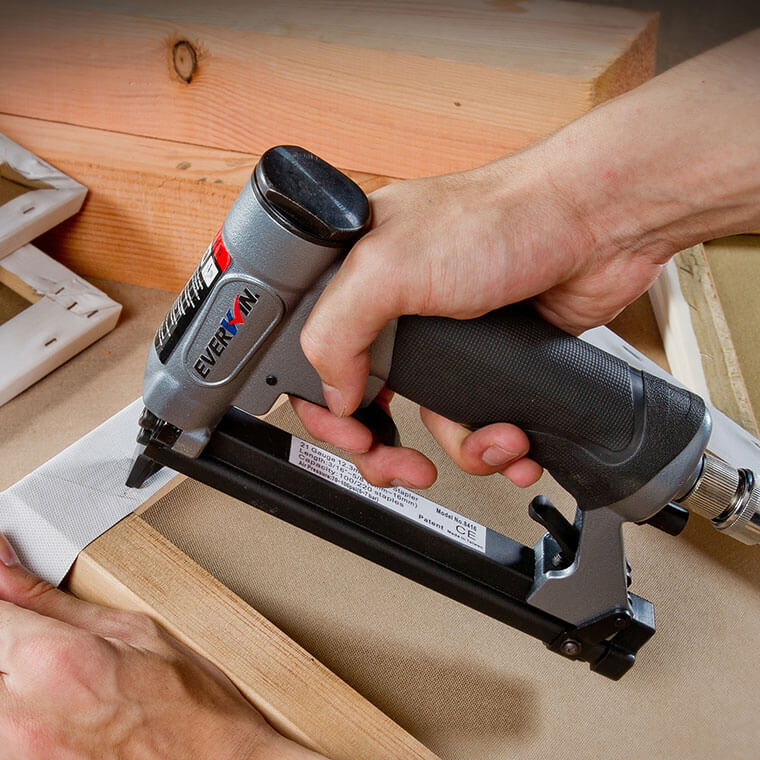

- Furniture Upholstery
- Automotive Vinyl
- Trim Carpentry

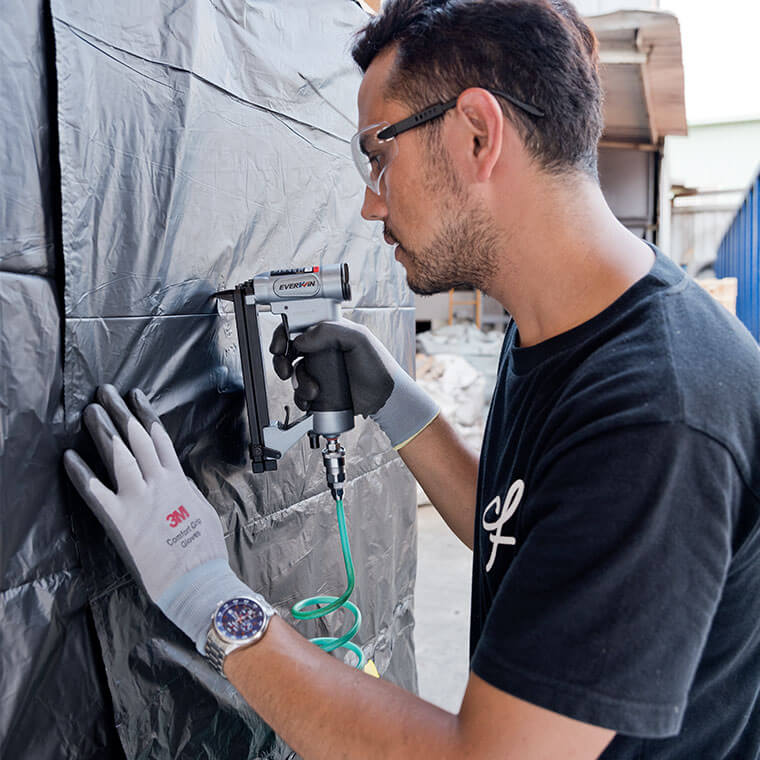

- House Wrap
Features
-
Rear Adjustable Directional Exhaust – Accommodates different working environments
-
Safety Option – Optional safety double trigger
-
Rapid Cycling Engine – Fast cycle time boosts efficiency
-
Easy-Access Magazine Latch – One-hand manual rear latch
-
All Metal Magazine – Robust construction endures rough production settings
-
Speed-Adjustable Automatic Version Available – Switch between single-fire and automatic mode with flexible speed settings
-
Extra Long Nose Available – 50 mm (2") nose helps tackle applications with hard-to-reach spots
Tool Specification
| Weight |
Standard Magazine: 0.9 kg (2.0 lbs)
Long Magazine (ALM): 1.2 kg (2.6 lbs) |
| Height |
Standard Nose: 140 mm (5.5")
Long Nose (LN): 197 mm (7.8") |
| Width |
38 mm (1.5") |
| Length |
Standard Magazine: 197 mm (7.8")
Long Magazine (ALM): 380 mm (15") |
| Operating Pressure |
5–6.9 bar (70–100 psi) |
| Driving Power (in-lbs @ 100 psi) |
51 |
| Air Consumption (L/sec @ 90 psi) |
0.3 (0.64 cfm) |
Fastener Specification
| Type |
22 GA. 71 Series / Senco C |
| Loading Capacity |
100–180 |
| Shank Type |
Smooth |
| Staple Length |
5–16 mm (3/16"–5/8") |
| Staple Crown Width |
9.1 mm (3/8") |
| Staple Wire Dia. |
0.60 x 0.75 mm (0.024" x 0.030") |
