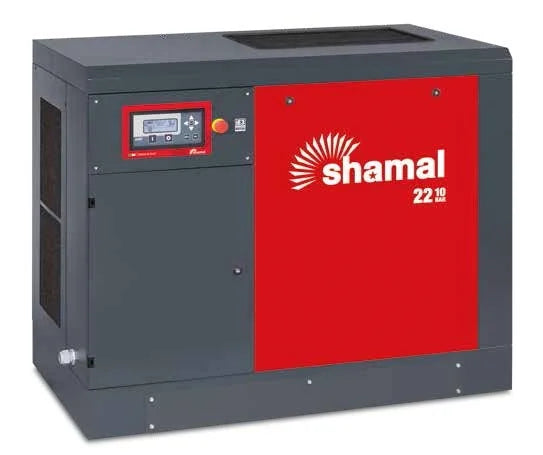

The SHAMAL Screw compressor STORM 22-10 is an Italian-made rotary screw air compressor built for continuous industrial use. Its 22 kW (30 HP) motor supplies 3000 L/min (106 CFM) of compressed air at a maximum pressure of 10 bar (145 psi), enough to run several tools or a small to mid-size production line.
Rotary screw technology gives smooth, steady airflow and suits long duty cycles better than piston compressors. At about 68 dB(A), the SHAMAL STORM 22-10 is quiet for its class and can be installed close to the work area. It runs on standard 3-phase 400V/50Hz power, so it fits most industrial sites in the UAE and the GCC.
It suits workshops, factories, and production lines that use pneumatic tools, packaging, spray painting, sandblasting, CNC machinery, automotive service, and general manufacturing.
Key benefits
- Rotary screw design for continuous, steady air supply
- 106 CFM (3000 L/min) output for multiple tools or a production line
- 10 bar (145 psi) maximum pressure for demanding applications
- Quiet operation at around 68 dB(A)
- Italian engineering and build quality
- Compact 136 x 83 x 113 cm footprint at 419 kg (923 lbs)
Technical specifications
| Specification |
Value |
| Model |
SHAMAL STORM 22-10 |
| Type |
Rotary screw air compressor |
| Air displacement |
3000 L/min (106 CFM) |
| Max pressure |
10 bar (145 psi) |
| Motor power |
22 kW (30 HP) |
| Power supply |
3Ph / 400V / 50Hz |
| Noise level |
68 dB(A) ± |
| Weight |
419 kg (923 lbs) |
| Dimensions (W x D x H) |
136 x 83 x 113 cm |
| Origin |
Made in Italy |
