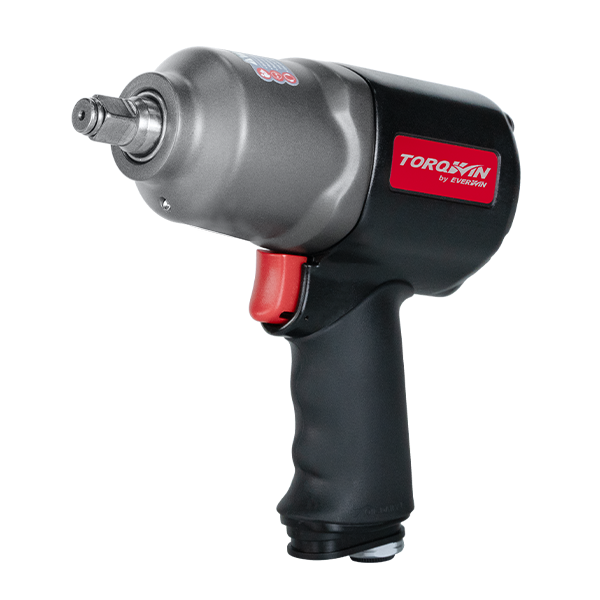

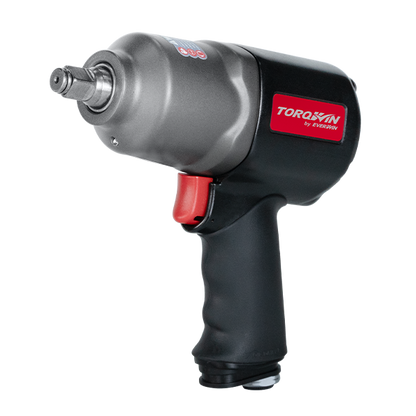

The Torqwin IWT-500 from Torqwin's Standard IWT Series delivers a maximum torque of 891 Nm (660 ft-lb) for industrial production, repair, and maintenance. This lightweight tool features a twin-hammer mechanism and a durable Torqwin motor, providing an exceptional power-to-weight ratio with minimal reaction force.
Engineered with a balanced design and rugged metal end plate, the IWT-500 incorporates a dial adjustment for forward/reverse operation, a variable-speed trigger, and an integrated silencer for reduced noise.
Available with a pin or ring anvil, the IWT-500 combines high torque, low weight, and unbeatable value for demanding industrial environments.
Maximum torque, minimum downtime ā rugged enough for shop floors, refined enough for repeat performance.
Features
- Durable Torqwin motor

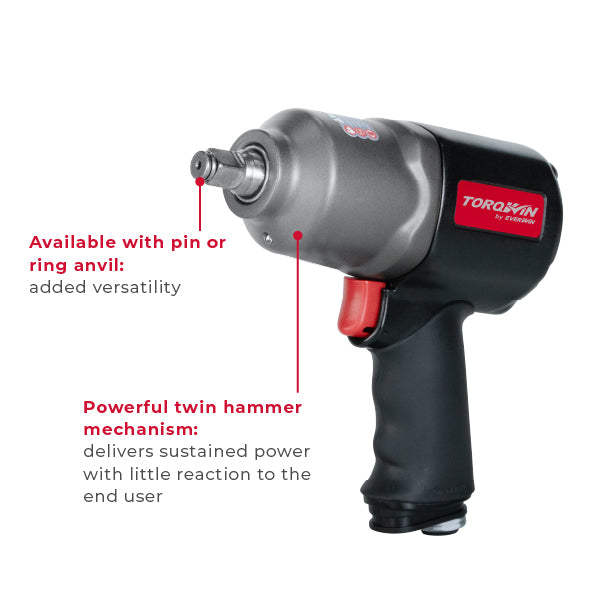

- Available with pin or ring anvil
- Powerful twin hammer mechanism
- Variable-speed trigger
- Silencer muffler
- Rugged metal end plate
- Dial forward, reverse, and speed settings
Specifications
| Avg. Air Cons. |
141 L/min (5 CFM) |
| Tool Weight |
2.3 kg (7 lbs) |
| Length |
190 mm (7.48") |
| Width |
71.5 mm (2.81") |
| Height |
185 mm (7.28") |
| Free Speed |
8,500 RPM |
| Sound Pressure (LpA) |
95 dBA |
| Vibrations |
6.8 m/sĀ² |
| Air Inlet |
1/4" |
| Working Torque |
743 Nm (550 ft-lbs) |
| Max. Torque |
891 Nm (660 ft-lbs) |
| Square Drive |
1/2" |
